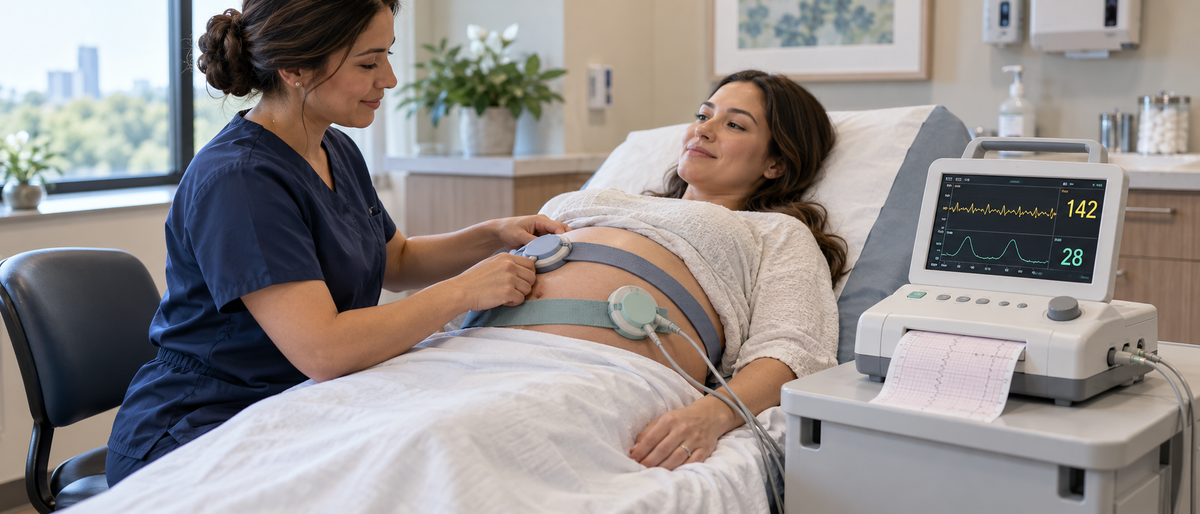

Fetal monitoring translates what is happening inside the uterus into signals a clinical team can actually read and act on. For anyone outside obstetrics, the terminology (FHR, TOCO, DECG, IUP) can look like alphabet soup. Using Edan's F2 fetal monitor as a concrete example, here is what each of these parameters actually measures and why it matters.
FHR: Fetal Heart Rate, the Central Measurement
Fetal heart rate is the parameter every fetal monitor is built around, and it can be captured two ways. Ultrasound-based FHR uses pulsed Doppler with autocorrelation, a technique that improves signal reliability by cross-referencing consecutive heartbeat detections rather than relying on any single reading. On the F2, this method measures a range of 50 to 240 beats per minute with 1 bpm resolution. The system also supports DECG, direct fetal ECG, using a peak-to-peak detection technique that reads the fetal heart's electrical signal directly, typically through an internal scalp electrode once membranes have ruptured, providing a measurement range of 30 to 240 bpm with comparable precision. DECG generally delivers a cleaner, more continuous signal than external ultrasound monitoring, which is why it is often used when external tracing quality is poor or during active labor management.
TOCO: Tracking Contractions
TOCO stands for tocodynamometry, and it measures uterine contraction activity, specifically the relative pressure or tension detected at the maternal abdominal surface. It is displayed as a percentage (0 to 100 percent on the F2) rather than an absolute pressure value, because external TOCO measures relative changes in abdominal tension rather than true intrauterine pressure. This external, non-invasive approach is standard for most labor monitoring and pairs with the FHR trace to let clinicians see how the fetal heart rate responds to each contraction, a relationship that is central to interpreting a fetal monitoring strip.
IUP: When Contraction Pressure Needs to Be Precise
IUP, intrauterine pressure, is the invasive counterpart to TOCO, measured directly via a pressure catheter placed inside the uterus rather than estimated from the abdominal surface. On the F2, IUP measurement covers a 0 to 100 mmHg range. This method provides a true, quantified pressure reading rather than a relative percentage, which becomes clinically important in situations like labor induction management or when external TOCO tracing is unreliable due to maternal body habitus or fetal position.
AFM: Fetal Movement
AFM, or fetal movement monitoring, uses pulsed Doppler ultrasound to detect fetal movement, displayed as a percentage indicating movement activity. This parameter, often paired with a manual fetal movement marker that the mother or clinician can trigger, feeds into non-stress test interpretation, where the relationship between fetal movement and heart rate acceleration is a key indicator of fetal wellbeing.
The Probe Itself Matters
The F2 uses a 1 MHz ultrasound probe for FHR detection, and that frequency choice is deliberate rather than arbitrary. A lower detection frequency provides deeper penetration, which matters significantly for larger patients where the fetal heart may be further from the abdominal surface, and evidence suggests lower frequencies also reduce tissue exposure compared to higher-frequency alternatives. Signal quality indicators on the probe help the clinician optimize positioning in real time rather than discovering a poor-quality trace only after the fact, and twin pregnancies are supported through signal overlap verification that helps differentiate between two separate fetal heart rate signals rather than one system inadvertently tracking the same heartbeat twice.
Why Portability Has Become a Priority
Modern fetal monitors like the F2 are built with outpatient and clinic use specifically in mind: a compact, foldable 5.6 inch screen, a long-life lithium-ion battery, and a lightweight design that makes the unit genuinely easy to carry between exam rooms rather than requiring a dedicated, fixed monitoring station. Twelve hours of built-in memory support seamless monitoring without needing constant data offload, and network connectivity options allow remote monitoring and PC-based data management for practices that need to review traces outside the exam room.
Bottom Line: Fetal monitoring combines several distinct measurements, heart rate (via ultrasound or direct ECG), contraction activity (via external TOCO or invasive IUP), and fetal movement, into a single trace that clinicians read together to assess fetal wellbeing. Understanding what each parameter actually measures, and the tradeoffs between external and invasive methods, helps demystify what can otherwise look like an intimidating wall of acronyms on the monitor screen.
