A C-arm that performs perfectly on the spec sheet can still consume fifteen minutes of OR time during setup if the surgical team has not developed efficient positioning protocols. C-arm positioning — getting the system into the right geometric relationship with the patient and procedure site, and keeping it there as the case progresses — is a skill that develops with practice but benefits from understanding the principles. Here is a practical framework.
Understand the Isocenter

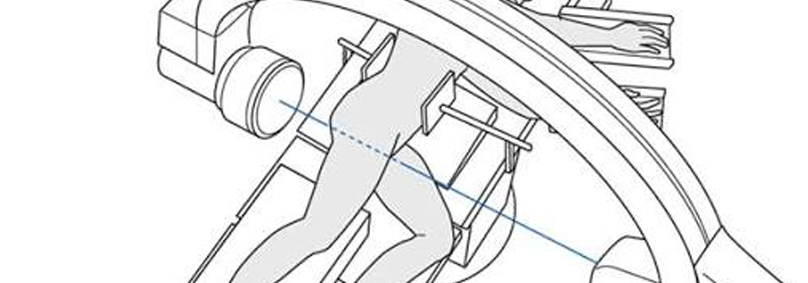

The isocenter is the point in space that remains stationary as the C-arm rotates through its orbital range. A well-designed C-arm performs isocentric rotation — the anatomy positioned at the isocenter at the starting angle stays centered in the image as the arm rotates to new angles. Systems with true isocentric geometry allow the team to position the anatomy once, confirm centering with a single test exposure, and then rotate to any required projection angle without losing the anatomy from the field.
In practice, most mobile C-arms are approximately isocentric but not perfectly so — small lateral or vertical drift occurs during rotation. Understanding the magnitude of this drift for your specific system, and accounting for it during initial setup, reduces the number of repositioning moves required during the case. Zero-dose positioning aids (laser localizers on systems like the Fujiflim Persona C) allow the team to confirm centering without an X-ray exposure.
Table and Patient Positioning First
The single most common source of C-arm positioning frustration is trying to compensate for suboptimal patient and table positioning with C-arm movement. The C-arm has a defined range of motion; the surgical table usually does not. Getting the patient positioned correctly on the table — with the anatomy of interest in the center of the table, at a height that allows the C-arm to achieve the required projections without hitting the table or the anesthesia equipment — is a prerequisite for efficient C-arm setup that often receives insufficient attention during pre-procedure planning.
For hip and femur procedures, confirming that the table allows AP and lateral projections without obstructing the C-arm's path matters before the patient is prepped and draped. For spine procedures, the table height and patient lateral position determine whether the lateral projection requires arm rotation or physical repositioning of the entire system. A five-minute pre-case positioning check prevents a fifteen-minute repositioning delay during the case.
Tube Below the Table: The Standard for Most Procedures
Positioning the X-ray tube below the table surface — tube-under technique — is the standard approach for most orthopedic and spine fluoroscopy. It places the primary scatter from the patient downward and away from the surgical team, who stand above the table. When the tube is above the patient, scatter from the patient's skin surface is directed upward toward the surgeon's hands and torso, significantly increasing their radiation exposure compared to tube-under positioning.
Exceptions exist: some lateral projections and oblique views for specific anatomy require tube-over positioning, and fluoroscopy of the shoulder from a lateral approach with the tube lateral to the patient similarly cannot use tube-under. In these cases, consistent lead apron use and maximizing distance from the scatter source during acquisition are the appropriate compensatory measures. The key is developing an awareness of where the tube is and where the scatter goes, rather than defaulting to tube-over because it is geometrically convenient.
Draping the C-Arm
C-arm draping for sterile field procedures requires draping both the C-arm arm itself and the detector housing to prevent contamination of the sterile field when the arm passes over or adjacent to the operative site. Standard C-arm drapes are designed for specific C-arm models and must cover the full arc of anticipated motion during the case — not just the initial position. Using a drape that does not cover the full rotation range creates a contamination risk when the arm is repositioned during the case.
Bottom Line: Efficient C-arm use in the OR is as much about process and preparation as it is about the equipment itself. Isocentric rotation, pre-case positioning, tube-under technique, and proper draping are practices that reduce case time, protect the surgical team, and ensure the C-arm is an asset to the procedure rather than a source of delay.
