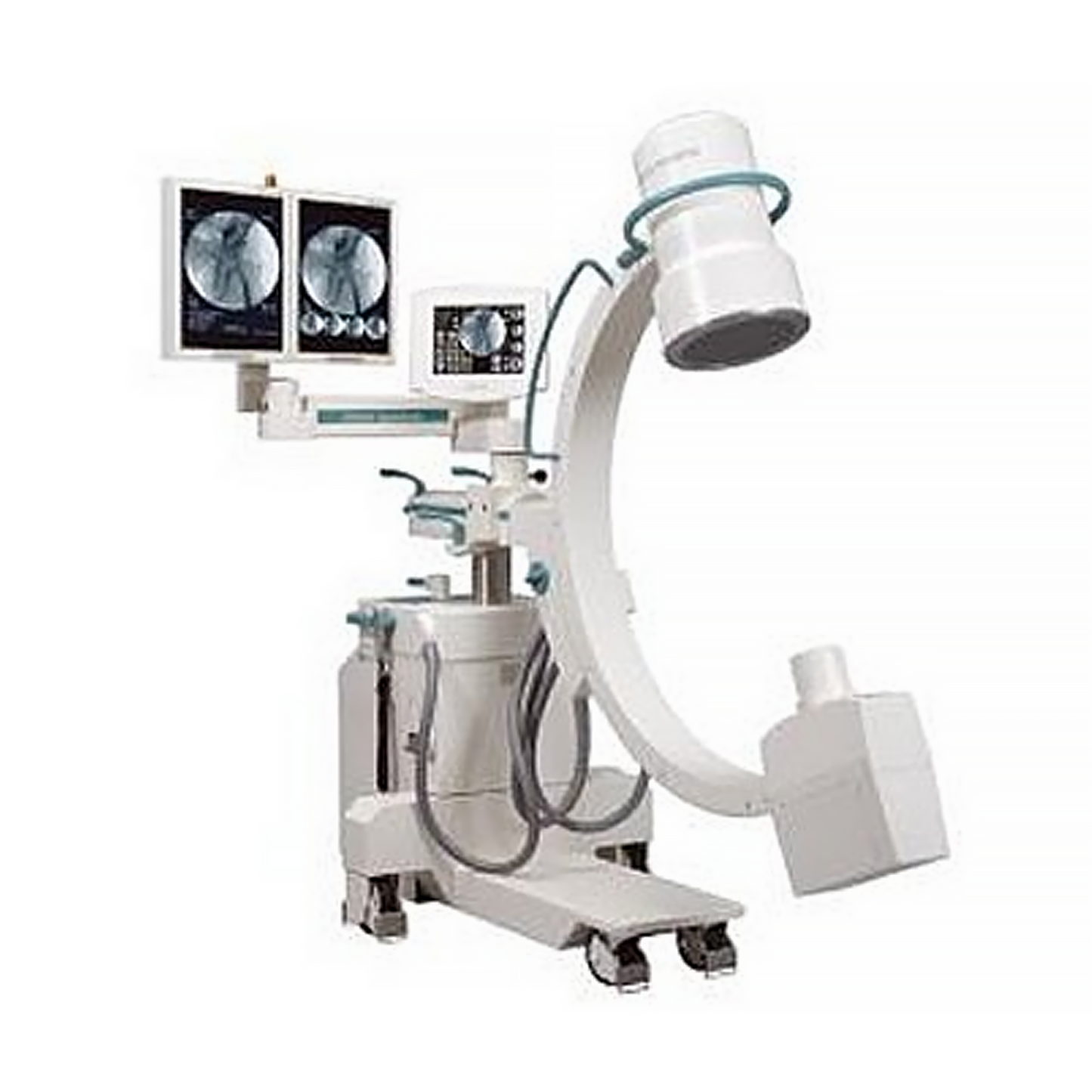

Ziehm Quantum C-Arm

  • Fully Refurbished
  • Compact Style C-Arm System
  • Stationary Anode X-Ray Tube
  • 768px 494px  Image Resolution
  • Digital CCD Camera
  • Flat Panel Monitors
  • 9″ Image Intensifier

Brochures:

Ziehm Quantum C-Arm Brochure | Ziehm Quantum C-Arm Specifications

Description

The Ziehm Quantum™ is at the forefront of innovative, mobile, surgical C-Arm design. Eliminating the need for a monitor cart in the surgical room, the Ziehm Quantum™ is truly the world’s first full-featured, self-contained mobile surgical C-Arm. Its small footprint and lightweight design coupled with the advanced features of a state of the art 16-bit image processing system, makes the Ziehm Quantum™ the most compact and versatile mobile C-Arm available today.

Developed with the understanding and necessities of the clinical environment, the unique features and innovative design of the Ziehm Quantum™ place it in a class of its
own. With its superior imaging performance, lightweight and fully integrated design, the selection process is simple.

Offering outstanding functionality in terms of image quality, user interface, and dose savings, the Ziehm Quantum™ is designed for use in a wide range of fluoroscopic imaging procedures.

Working with the Ziehm Quantum™ provides fast and cost-effective results in a wide variety of medical procedures. The Ziehm Quantum™ provides high image quality, functionality, mobility, and network connectivity to keep pace with the clinical requirements of today’s modern medical practice.

The Equipped MD Difference.

Equipped MD offers all configurations of the Ziehm Quantum and refurbishes everything in-house using our 25+ years of c-arm refurbishing experience. All Ziehm systems go through our in-depth process which includes:

  • 300 Point Inspection Of Internal Parts
  • Replacement Of Wear Items
  • New Board Level Batteries
  • New Brake Pads
  • New Paint – Complete
  • Factory Calibration
  • Includes FDA Report Of Assembly (Form 2579)
  • Standard 30 Day Warranty, Optional 6 Months & 1 Year Options
  • Shipping Available To All 50 States

On top of our in-depth refurbishing process, Equipped MD offers a unique pricing program with our “Wholesale Direct” pricing structure. For years we have been building c-arms for other equipment distributors and dealers, and are now offering the same pricing direct to healthcare professionals. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

Product Specifications

C-ARM MOBILE STAND

X-Ray Generator

  • X-ray tube: stationary anode
  • Single focus (IEC): 0.5/1.5mm
  • Generator type:
    -20 kHz high frequency
    -Microprocessor-controlled
Operating Values:
  • Nominal output (100 kV): 2,000 W
  • Maximum output: 2,200 W
  • Fluoroscopy:
    -kV range: 40-110 kV
    -mA range: 0.2.-6.0 mA
  • Digital radiography (snap shot):
    -kV range: 40-100 kV
    -mA: up to 8 mA
Filtering:
  • Total filtering: > 4 mm Al equivalent
Output:
  • Fluoroscopy: 660 W (max)
  • Digital radiography (snap shot): 880 W
  • Tube housing heat capacity:
    -800Kj
    -1.14 million HU
Collimator System:
  • Collimator rotation: +/- 90 Degrees
  • Iris collimator:
    -9″ II – 50-230 mm diameter

Digital Video Chain

Digital Video Camera:
  • Active pixels: 379,392
  • Camera matrix: 768 x 494 pixels
  • Bandwidth of video signal: 7.5 MHz
  • Bandwidth of video amplifier: 25 MHz
  • Video (monitor): 570 lines
  • Signal-to-noise ratio: 48 dB
  • Control: ADR / AVR

Image Intensifer

  • Type
    -Cesium iodide
  • DQE (IEC)
    -65%
  • Conversion factor
    -240cD
  • Antiscatter grid
    -pb 8/40
9″ II / 23cm
  • Central resolution: 9″ / 6″ (23-15-10 cm)
  • Contrast ratio: 30:1

Dimensions & Mechanics:

  • Motor-driven vertical travel: 43cm
  • Horizontal travel: 22 cm
  • Orbital rotation:
    -90 Degrees / +45 Degrees (9″ II) +25 Degrees (12″ II)
  • Angulation: +/- 225 Degrees
  • Swiveling (panning): +/- 10 Degrees
  • Source/image receptor distance: 97 cm
  • C-Arm depth: 68 cm
  • Width: 80 cm
  • Length: 160 cm (9″ II) / 182 cm (12″ II)
  • Height: 170 cm (9″ II) / 214 cm (12″ II)
Brakes:
  • Patented steering & braking lever, with parallel movement of the mobile stand in all directions

Digital Image Processing

Real-Time Processing Functions:
  • Recursive filter: 4 levels
  • Stack filter (Last Image Hold): 4 levels
  • Edge enhancement filer: 4 levels
  • Digital image rotation and reversal without radiation
DSA Package (option):
  • DSA real-time subtraction with re-masking capability
  • Pixel shift / landmarking
Post Processing Functions:
  • Edge enhancement: 4 levels
  • Zoom: 2x & 4x
  • Image rotation: 1-360
  • Windowing
  • Grayscale inversion
Digital Memory:
  • Storage capacity: up to 20,000 images
  • Memory matrix: 1024 x 1024 pixels
  • Image matrix: 1024 x 1024 pixels
  • Digital image processing: up to 16 bit
Data Organization:
  • Patient-oriented search function with thumbnail image display

Monitors

  • High-resolution and high-brightness dual LCD FPD monitors
    -Screen size: 18.1″ (46 cm)
    -Native resolution: 1280 x 1024 pixels
    -Dimensions: 15.96″ x 13.33″ x 3.60″
    -Bandwidth: 45 MHz

Archiving

  • Video printer (optional): paper and film
  • USB port
  • Optional: external DVD-RW drive
Networking:
  • DICOM 3.0 interface (RJ45 or WLAN connection) for digital network integration
    -Storage class
    -Print class
    -Media class
    -Worklist class

Weight

  • Mobile Stand (9″ II)
    -560-580 lbs
