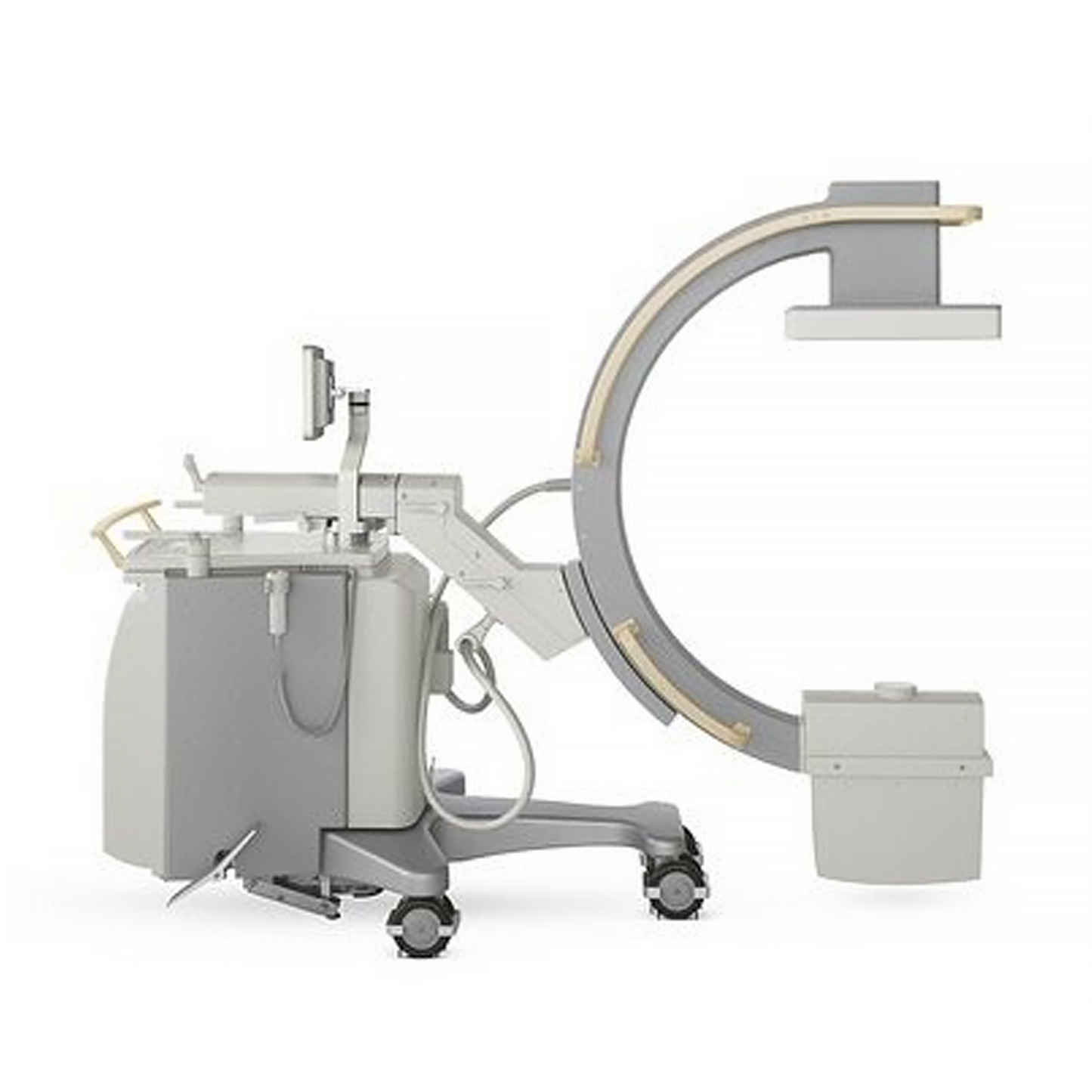

Philips Veradius C-Arm

  • Fully Refurbished
  • Rotating Anode X-Ray Tube
  • High-Resolution Flat Detector
  • 1560 x 1420 Pixel Resolution


Philips Veradius C-Arm Brochure


As a surgeon you want to perform to the best of your ability. You want to take advantage of innovative minimally invasive procedures and the latest imaging techniques.

Designed in collaboration with surgeons from around the world, Veradius Neo proves that true excellence does not have to be difficult. It gives you and your staff the excellent image quality, ease of use, and radiation dose management features you need. This second generation Flat Detector system achieves new levels of system utilization with the flexibility to perform a wide range of procedures, making it a true multi-purpose system.

With its optimized C-arc geometry, Flat Detector imaging technology and advanced radiation dose settings, Philips Veradius Neo helps you take the next step in excellence allowing you to carry out complex procedures with confidence and control.

Key advantages

• Excellence in orthopedic imaging means less effort to position and easy access to obese patients via optimized C-arc design.
• Excellence in cardiovascular imaging means brilliant visualization of small catheters or stents in endovascular procedures thanks to cutting edge Flat Detector technology.
• Excellence in radiation dose means freedom to reach the desired image quality using excellent radiation dose efficiency.

The Equipped MD Difference.

Equipped MD offers all configurations of the GE OEC 9800 and refurbishes everything in-house using our 25+ years of c-arm refurbishing experience. All GE OEC systems go through our in-depth process which includes:

  • 300 Point Inspection Of Internal Parts
  • Replacement Of Wear Items
  • New Main Battery Packs
  • New CMOS & GIB Board Level Batteries
  • New Brake Pads
  • New Paint – Complete
  • Factory Calibration
  • Includes FDA Report Of Assembly (Form 2579)
  • Standard 30 Day Warranty, Optional 6 Months & 1 Year Options
  • Shipping Available To All 50 States

On top of our in-depth refurbishing process, Equipped MD offers a unique pricing program with our “Wholesale Direct” pricing structure. For years we have been building c-arms for other equipment distributors and dealers, and are now offering the same pricing direct to healthcare professionals. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

Product Specifications

X-Ray Generation:

X-ray tube: Rotating Anode tube

X-ray generator: Monoblock 80 kHz high frequency generator

Maximum generator output: 15 kW


C-arc: color-coded, fully balanced

Angulation: + 90 ° / – 45 ° °

C-arm depth: 73 cm (29″)

Source Image Distance: 99.3 cm (39″)

Lowest lateral working position: 93.2 cm (37″)

Flat detector:

Type: Trixell amorphous silicon detector

Active Detector Area: 26.2 cm x 26.2 cm (10.3″ x 10.3″)

Matrix size: 1560 x 1420 pixels

Pixel pitch: 184 µm

Dynamic range: 103 dB (16 bit) dB


WLAN: Optional

Additional information





C-Arm Size

Full Size – 2pc C-Arm & Monitor Cart
